Sheen Gate Gardens, East Sheen
Large 2 storey rear extension
Haywards Heath, Sussex
Single storey vaulted extension added to existing kitchen that had substantial refurbishment.
Tooting High Street
Constructing a new flat on top of an existing double extension
Richmond, Surrey
Constructing a new church hall
Tooting High Street
Conversion to 3 Flats
Original facade
Aerial view of rear - initial strip out using the rubbish chute.
Extension half built
Finished project
Works in progress - nearly all of the original back wall was taken out floor by floor and the only thing left internally was the staircase. The original roof structure was kept but modified.
Finished frontage leaving existing shop sign
Manor Crescent, Surbiton
Loft conversion, rearrangement of first floor and new roof to kitchen
Existing rear view
Existing roof taken off kitchen
New roof over kitchen started
Forming roof over bedroom extension
New loft floor, ceiling and purlin supports
Loft Dormer formed, bedroom extension roof tiled
New staircase to loft
Bedroom extension feature window
Kitchen electric rooflights, zinc roofing and completed loft
Master Bedroom feature window
Master bedroom showing door to en-suite and wardrobes
Master bedroom en-suite
Loft bedroom front slope
Loft bedroom dormer at rear
Finished extension - just needs painting. BTW we're doing the contract next door as well
FINISHED
Sheen Gate Gardens , East Sheen
Before we started
Original kitchen
Digger had to go through house - very tight
Old kitchen nearly demolished
Setting out
Footings excavated
Footings concreted
Outer skin of brickwork to dpc and steel columns being bolted to foundations
Starting excavation of spiral wine cellar. After first former is in place, excavated down 900mm, new former bolted on top of first and then both formers dropped the excavated 900mm. Repeated until depth of 3m achieved.
Down to depth
Floor slab sub base ready
Floor slab reinforcement going in.
Finished slab - except round wine cellar.
Main cranked beam installed
Roof structure being installed
View towards garden end
Nearly ready for roof covering.
Specialists starting to install spiral wine cellar.
Finished - including electrically operated trapdoor.
Zinc roof specialists installing Veluxes.
Flat roof covering done = hot bitumen laid.
All roofing & skylights completed
Folding sliding doors installed. White pipes in foreground are vent pipes for the wine cellar.
Underfloor heating pipes installed
Pipes are laid to avoid kitchen units, vent pipes etc.
Screeding done
Plastering being done.
Kichen fitting starting - all £90k of it !
Sub Zero American fridge, Double Gaggenau ovens
Here are a selection of professional photographs the client commissioned
The following is a selection of more modest lived-in finished photos
Sheen Gate Gardens, East Sheen
Existing extension demolished by others. We also completely refurbished the whole top floor including the roof - not shown here'
Foundation trench dug
Foundation footing concreted
Starting brickwork
Walls going up
Steelwork going up
Flat roof at rear being installed
Skeiling formed on one side of roof
View from inside the house towards rear
Back wall of house at first floor level taken out and steels installed.
Mezzanine roof steels installed
Mezzanine roof structure
Roof insulation fitted, gutters formed
Meanwhile downstairs, ready for concrete slab
Including whole of the existing house
Concrete poured
Meanwhile back on top, zinc roof over main kitchen area installed
As well as mezzanine roof
Blockwork forming bedroom rear wall, mezzanine windows & lower glass roof.
Zinc fascia nearly done
Ready for lower glass roof
Mezzanine windows fitted
Kitchen bi-folds in, plastering started
Underfloor heating looking towards rear
Underfloor heating looking towards front lounge (now blocked off) with WC partition now in place
All plastered, kitchen units going in.
Looking towards front
Staircase up to mezzanine fitted
Finished outside view
View down the side
Rear aerial view
Side aerial view
The Rosary Barn, Haywards Heath
Looking from kitchen to garden
The existing AGA that gets refurbished, front door is just visible in the far right
Old kitchen taken out
Old conservatory demolished, strongboy props in place ready to take out wall.
Taking out one of the existing old barn walls
Getting a foundation pad ready for a new oak support column.
Back wall taken out, footings dug but the ground was so bad it had to be shuttered.
The drainage needed to be bridged so the foundations were stopped short on the left, right and top.
Concreted and shuttering removed
Installing soakaway
Steels were placed on the foundation ends, bolted together, wrapped in thin mesh then shuttering formed round it.
Brickwork to DPC laid, pad concreted and steel installed.
Brickwork done, steelwork being installed.
Roof rafters being installed.
Raw green oak Structural supports in place
New green oak entrance porch at opposite end of kitchen. Crane is trying to squeeze through gap between buildings.
Crane needed to lift 1.5 tonne of solid oak into place - the oak is purely ornamental, the conservation people thought it would look nice - which it does.
There was existing underfloor heating in the old kitchen....
Which we extended into the new extension. Screeding started.
Folding sliding doors in, just waiting for windows above to be finished.
New enclosure for Aga - with orange glass splashback & reclaimed oak faux beam.
Getting down to the finishes
Looking towards front door.
Kitchen being fitted.
Finished photos
Still a bit of unpacking to do
Partitioned off some of the utility room, formed a new doorway by the front door and fitted a WC

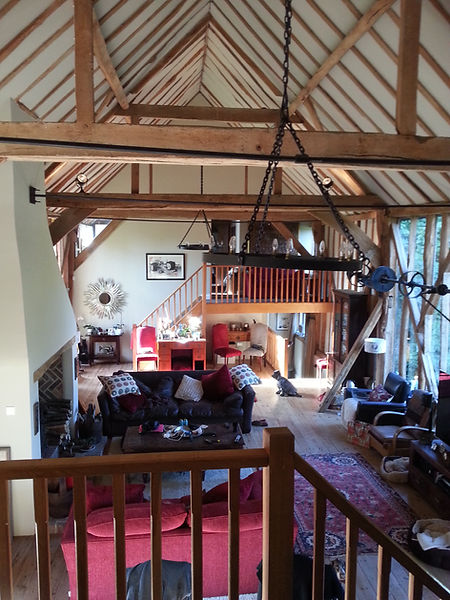

A few photos of the lounge in the barn next to the kitchen - fabulous room but was already finished before we started !
106-108 Tooting High Street
Old roof structure removed, forming new entrance to common parts.
Sound reducing quilt and T&G flooring laid on top of existing ceiling rafters.
Steel deck installed above existing ceiling.
Cranked on one side
Street side is built up square.
Joists fitted with Fireline board between.
T&G flooring laid on deck with more sound reducing quilt underneath.
External timber frame walls being buit.
This side will have a sloping tiled roof.
First of the roof columns & steels being installed. On the floor you'll see a layer of soundproof mat, then a layer of Fireline board then another layer of T&G flooring !
First half of the main roof ridge beam in place.
The other half now in place.
Roofing started.
Outer brick skin being built
Side roof being prepared.
Forming a small patio just outside kitchen area.
GRP done with antislip particles in floor surface.
Plasterboard & plastering in progress.
Engineered oak flooring being installed.
Finished works
Boiler cupboard is by flat door.
Bathroom is down the hallway on the left, Bedroom on the right.
New Church Hall, Richmond, Surrey
Built in 1993 behind Church of our Lady Queen of Peace
Original church hall
Demolished !
Pouring the rear foundations
Foundations complete
Drainage & brickwork to dpc being done
Concrete pad being prepared
Concrete pad being poured
Walls going up
Walls nearly finished
Reinforced ring beam being concreted
Roof steels being installed
Roof structure being installed
Roof insulation, Veluxes fitted, tower built
Monsignors office being built at one end
Toilets, canteen and gallery built at entrance end
View from gallery
Gents toilet being fitted out
Ladies toilet being fitted out
Staircase to gallery
Rear of the building with the tower at the end
Finished project looking towards gallery, canteen & toilets
Looking the other way towards upstairs office
